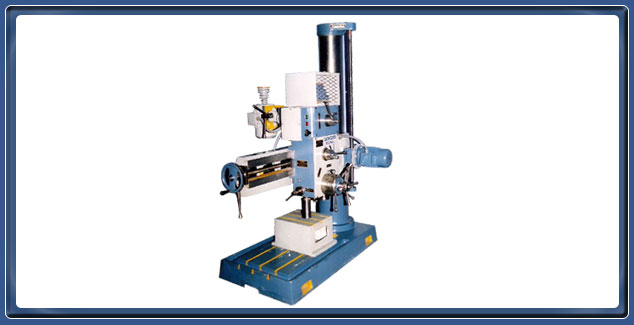

SEMI
GEARED RADIAL DRILLING MACHINE |
| |
| We
are reckoned amongst the most trusted brands of Semi Geared Radial Drilling Machines.
These are manufactured using high grade material and are offered with drilling
capacity of 40 mm, 50 mm and 60 mm. Our range of Semi Geared Radial Drilling Machine
conforms to the international quality standards and is known for its reliable
and long lasting performance, easy operation and low maintenance. |
| |
|
| |
| Technical
Specifications | | Model
No | SSR
40 | SSR
50 | SSR
60 | | Drilling
Capacity | 40mm | 50mm | 60mm |
| Spindle
Nose | Mt-4 | Mt-4 | Mt-5 |
| Spindle
RPM | 85-550 | 60-650 | 60-650 |
| Drilling
Radius Min / Max | 300
/ 850 | 325
/ 1050 | 350
/ 1200 | | Vertical
Travel of Arm | 900 | 1100 | 1250 |
| Main
/ Elevating Motor | 2hp
& 1hp | 3hp
& 1hp | 5hp
& 2hp |
| |
