| | H
TYPE POWER PRESS | | | | We

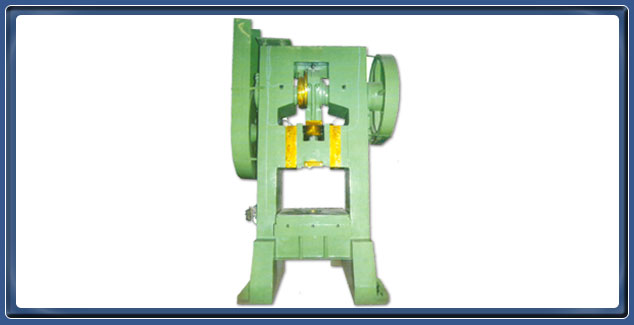

offer a comprehensive range of H Type Power Press to our clients. These power
presses are designed by experts. The clutches of the H Type Power Presses have
been designed of rolling key type and endows with constant strokes for mass production.
Crankshaft is made of special alloy steel and fitted in with gunmetal bushes for
flawless working and high-end durability. Table and ram are faultlessly aligned
to each other to get very good quality precision press operation. These power
are appreciated for their unique features including durability, high quality,
superior performance, reasonable rates. | |
| Specification
of “H” Frame Mechanical Press in mm | | Capacity
in Tons | 10 | 20 | 30 | 560 | 75 | 100 | 150 | 200 | 250 | 300 |
| Bed
Size | 280x330 | 330x406 | 381x431 | 457x508 | 560x560 | 585x635 | 685x735 | 785x810 | 865x915 | 915x1015 |
| Bed
to Ram Bottom | 200 | 228 | 275 | 305 | 330 | 380 | 455 | 508 | 550 | 600 |
| Stroke
Length | 50 | 55 | 63 | 80 | 90 | 100 | 145 | 150 | 150 | 175 |
| Crank
Shaft Dia out of | 75 | 80 | 100 | 110 | 130 | 156 | 170 | 205 | 230 | 256 |
| Gear
Dia | 430 | 560 | 610 | 660 | 765 | 865 | 965 | 1066 | 1170 | 1220 |
| Fly
Wheel Dia | 540 | 570 | 685 | 765 | 835 | 965 | 1095 | 1200 | 1320 | 1420 |
| Hole
in Ram for Die Clamping | 25.4 | 31.75 | 31.75 | 38.1 | 44.45 | 50.8 | 50.8 | 63.5 | 76.2 | 76.2 |
| Floor
to Top of Bed | 735 | 735 | 735 | 735 | 735 | 735 | 735 | 735 | 735 | 735 |
| No.
of Strokes per minute | 65 | 60 | 60 | 50 | 45 | 35 | 30 | 30 | 250 | 22 |
| Overall
Height without Motor | 1520 | 1765 | 1790 | 2000 | 2160 | 2340 | 2540 | 2900 | 3160 | 3430 |
| Approx.
Floor Area Required | 762x635 | 762x686 | 838x686 | 1016x762 | 1016x762 | 1067x863 | 1600x1040 | 1600x1140 | 1750x1220 | 1900x1270 |
| Power
Required (1440 RPM) | 2H.P | 2H.P | 3H.P | 5H.P | 7.5H.P | 10H.P | 15H.P | 20H.P | 25H.P | 30H.P |
|
|
