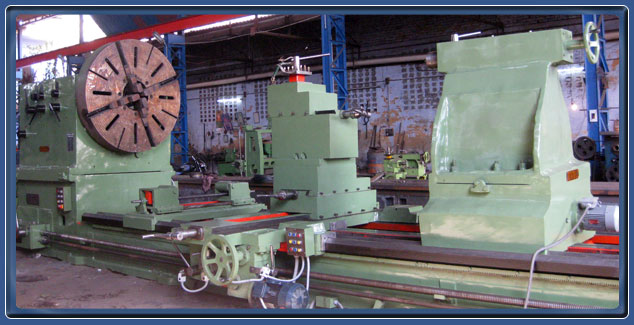

EXTRA HEAVY DUTY ALL GEARED LATHE MACHINE

We have a strong state-of-the-art infrastructure which enables us to offer a wide range of All Geared Lathe Machines to our clients. They are applied in various industries and are known for their sturdy construction, high performance and noiseless operation. They are designed keeping in view the industry standards and specifications laid down by the Government. We manufacture this entire range of All Geared Lathe Machines using high grade materials that ensure its long service life and durability.

Our range is offered in the following technical specifications to our clients:


MODEL NGL 16mm NGL
20mm		 NGL 20mmB NGL
26mm		 NGL 26mmB NGL
30mm		 NGL 30mmB NGL 36mm NGL
40mm		 NGL 40mmB NGL 48mm NGL 60mm NGL 80mm
Length of Bed 4900 6100 6100 7900 7900 9150 9150 10970 12200 12200 14600 18300 24400
Width of Bed 650 650 750 750 800 900 1050 1150 1150 1250 1500 1650 1800
Height of Center 600 600 700 700 750 850 1000 1100 1100 1150 1350 1500 1650
Distance Between Center 2850 4050 4000 5800 5500 6800 6700 8400 9600 9500 11900 15500 21500
Spindle Hollow 103 103 103 103 103 103 127 127 127 150 150 150 150
Swing over Saddle (Dia) 900 900 1100 1100 1200 1400 1650 1850 1850 1950 2300 2600 2900
Swing Over Bed (Dia) 1100 1100 1300 1300 1400 1600 1900 2100 2100 2300 2700 3000 3300
Swing Over Gap (Dia) 1700 1700 1900 1900 2000 2200 2500 2700 2700 2800 3200 3500 3800
No. of Spindle Speeds 8 8 8 8 8 8 8 8 8 8 8 8 8
RPM Range 10-300 10-300 5-150 5-150 3-85 3-85 3-85 2-50 2-50 2-50 2-50 2-50 1-40
Lead Screw Dia 60 60 60 60 60 60 75 75 75 75 85 85 85
Lead Screw Pitch T.P.I. 2 2 2 2 2 2 2 2 2 2 2 2 2
H.P. Recommended 10 10 15 15 20 20 25 30 30 30 40 50 50
