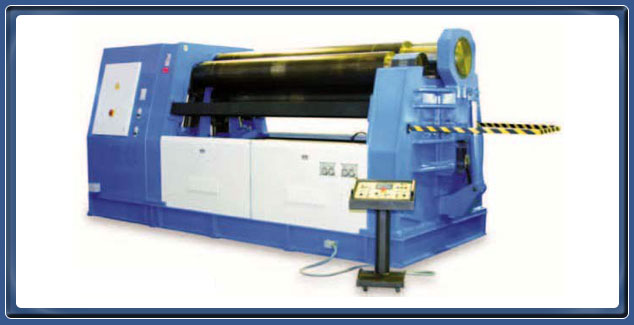

HYDRAULIC PLATE ROLLING


SPECIFICATION
Model
Pre-
bending Capacity
Bending Capacity
Bending Length
Top Roll Diameter
Side Roll Diameter
Min in Pre bending
Min in bending
Length
Width
Height
Weight
Motor Power
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
Kg
KW
SM PBM 815
6
8
1500
200
180
300
600
3100
1600
1350
4600
5.5
SM PBM 1015
8
10
1500
210
190
315
630
3200
1600
1400
4800
7.5
SM PBM 1315
10
13
1500
225
205
338
675
3350
1700
1450
5000
7.5
SM PBM 820
6
8
2000
210
190
315
630
3700
1600
1400
5900
7.5
SM PBM 1020
8
10
2000
225
205
338
675
3850
1700
1450
6100
7.5
SM PBM 1320
10
13
2000
240
220
360
750
3850
1700
1450
7000
11
SM PBM 1520
12
15
2000
270
250
405
810
3900
1750
1450
7700
15
SM PBM 1820
15
18
2000
290
270
435
870
4200
2100
1600
9100
15
SM PBM 2220
18
22
2000
320
290
480
960
4200
2250
1750
9500
18.5
SM PBM 2520
20
25
2000
350
300
525
1050
4200
2250
1850
12400
18.5
SM PBM 3020
25
30
2000
380
310
570
1140
4200
2250
1850
14900
22
SM PBM 3520
30
35
2000
420
330
630
1260
4600
2250
2100
17000
30
SM PBM 4020
35
40
2000
440
350
660
1320
5000
2300
2530
22000
37
SM PBM 5020
40
50
2000
460
370
690
1380
5150
2300
2530
26000
45
SM PBM 825
6
8
2500
225
205
338
675
4350
1700
1450
7200
7.5
SM PBM 1025
8
10
2500
240
220
360
720
4350
1700
1450
8100
11
SM PBM 1325
10
13
2500
270
250
405
810
4400
1750
1450
8800
15
SM PBM 1525
12
15
2500
290
270
435
870
4700
2100
1600
10300
15
SM PBM 1825
15
18
2500
320
290
480
960
4700
2100
1750
11100
18.5
SM PBM 2225
18
22
2500
350
300
525
1050
4700
2250
1850
14200
18.5
SM PBM 2525
20
25
2500
380
310
570
1140
4700
2250
1580
16700
22
SM PBM 3025
25
30
2500
420
330
630
1260
5100
2250
2100
19500
30
SM PBM 3525
30
35
2500
440
350
660
1320
5500
2300
2530
23000
37
SM PBM 4025
35
40
2500
460
370
690
1380
5650
2300
2530
26000
45
SM PBM 5025
40
50
2500
490
390
980
1960
5750
2350
2600
31000
37 + 11
SM PBM 6025
50
60
2500
525
500
1000
2050
6300
2200
2100
36000
45 + 11
SM PBM 7025
60
70
2500
575
550
1150
2200
6400
2300
2200
42000
56 + 15
SM PBM 8025
70
80
2500
650
625
1300
2350
6500
2450
2300
49000
75 + 18.5
SM PBM 630
4
6
3000
225
205
338
675
4850
1700
1450
8300
7.5
SM PBM 830
6
8
3000
240
220
360
720
4850
1700
1450
9200
11
SM PBM 1030
8
10
3000
270
250
405
810
4900
1750
1450
9900
15
SM PBM 1330
10
13
3000
290
270
135
870
5200
2100
1600
11500
15
SM PBM 1530
12
15
3000
320
290
480
960
5200
2100
1750
12700
18.5
SM PBM 1830
15
18
3000
350
300
525
1050
5200
2250
1850
16000
18.5
SM PBM 2230
18
22
3000
380
310
570
1140
5200
2250
1850
18500
22
SM PBM 2530
20
25
3000
420
330
630
1260
5600
2250
2100
22000
30
SM PBM 3030
25
30
3000
440
350
660
1320
6050
2300
2530
25500
37
SM PBM 3530
30
35
3000
460
370
690
1380
6150
2300
2530
29000
45
SM PBM 4030
35
40
3000
490
390
980
1960
6250
2350
2600
32500
37 + 11
SM PBM 5030
40
50
3000
520
410
1040
2080
6400
2350
2650
37000
37 + 18.5
SM PBM 6030
50
60
3000
535
510
1050
2100
7000
2250
2250
42000
45 + 11
SM PBM 7030
60
70
3000
600
575
1250
2300
7100
2450
2400
47000
56 + 15
SM PBM 8030
70
80
3000
675
650
1400
2450
7200
2550
2500
53000
75 + 18.5
SM PBM 840
6
8
4000
290
270
435
870
6200
2100
1600
11000
15
SM PBM 1040
8
10
4000
320
290
480
960
6200
2100
1750
13000
15
SM PBM 1340
10
13
4000
350
300
525
1050
6200
2250
1850
15000
18.5
SM PBM 1540
12
15
4000
380
310
570
1140
6200
2250
1850
17500
22
SM PBM 1840
15
18
4000
420
330
630
1260
6600
2250
2100
21500
30
SM PBM 2240
18
22
4000
440
350
660
1320
7050
2300
2530
25500
37
SM PBM 2540
20
25
4000
460
370
690
1380
7150
2300
2530
31000
45
